Double Column Machining Centers

FDC-14 Series

Models: 1417 • 1422 • 1432 • 1442

The FDC-14 Series delivers unmatched precision and power for large-scale machining operations. With X-axis travel ranging from 1700mm to 4200mm and table loads up to 8000kg, these double column machining centers are engineered for the most demanding aerospace, automotive, and heavy industry applications.

straighten
X-Axis Travel
1700-4200mm
fitness_center
Max Load
5000-8000kg
speed
Spindle Speed
8000 RPM
build
Tool Capacity
24-32 Tools
check_circle 4 Models Available
check_circle Multi-Brand Control
check_circle Heavy-Duty Design
FDC-14 Series Double Column Machining Center

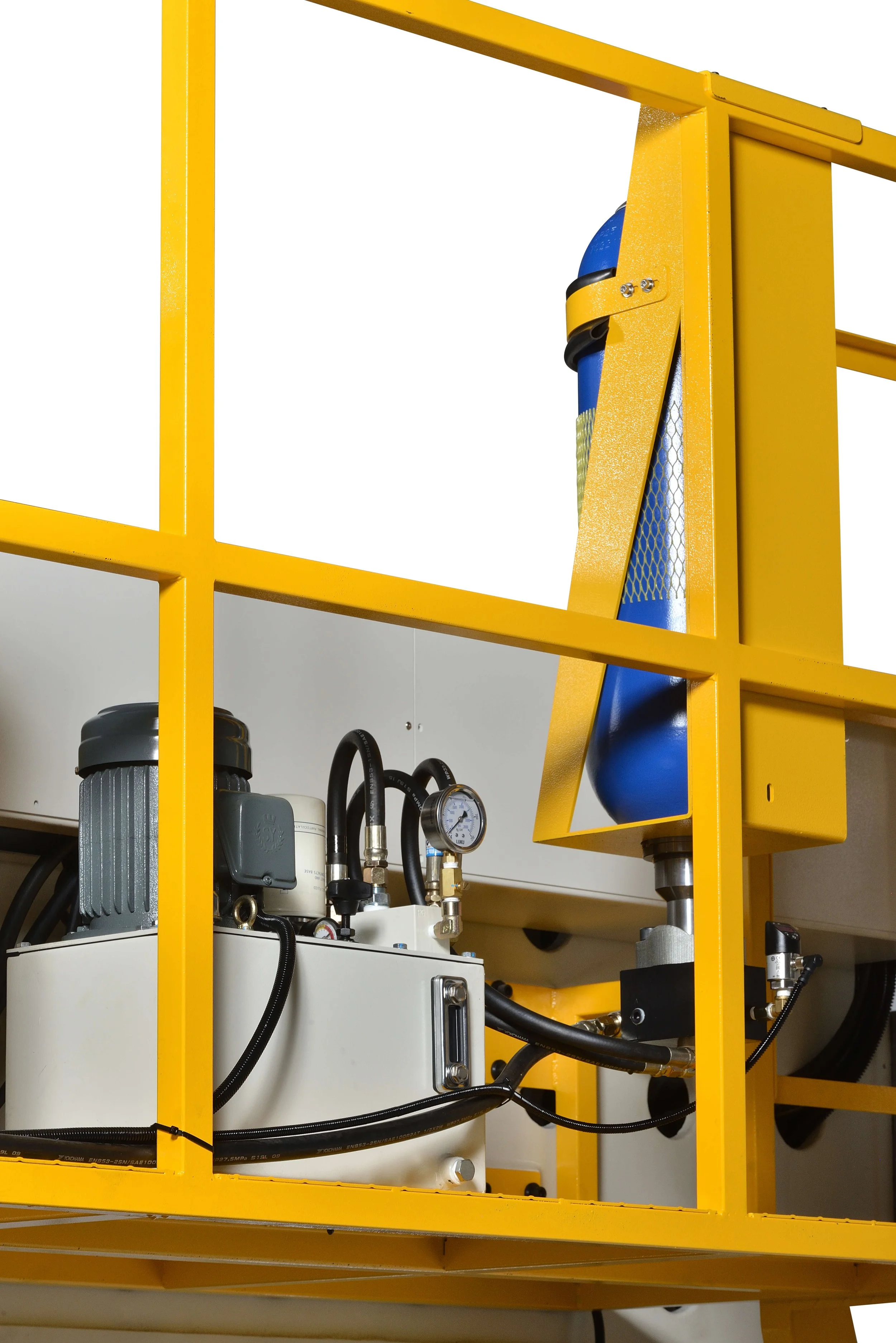

Gallery

FDC-14 Series Engineering Excellence

Explore the precision engineering and robust construction of our double column machining centers

Technical Specifications

Working Capacity
Table Size (mm)
1417: 1700x1200
1422: 2200x1200
1432: 3200x1200
1442: 4200x1200
X-Axis Travel (mm)
1700
2200
3200
4200
Y-Axis Travel (mm)
1400
1400
1400
1400
Z-Axis Travel (mm)
900
900
900
900
Max Table Load (kg)
5000
5000
8000
8000
T-Slot Configuration
22x150x7
22x150x7
22x150x7
22x150x7
Spindle Specifications
Tool Shank
ISO 50
ISO 50
ISO 50
ISO 50
Spindle Speed (RPM)
8000
8000
8000
8000
Spindle Motor (kW)
15/18.5
15/18.5
15/18.5
15/18.5
Spindle Inner Diameter
Ø100mm
Ø100mm
Ø100mm
Ø100mm
Draw Bar Force
1800kgf
1800kgf
1800kgf
1800kgf
Automatic Tool Changer
ATC Type
Disk/Chain
Disk/Chain
Disk/Chain
Disk/Chain
Tool Capacity
24/32
24/32
24/32
24/32
Max Tool Diameter
Ø115/Ø127
Ø115/Ø127
Ø115/Ø127
Ø115/Ø127
Max Tool Length
350mm
350mm
350mm
350mm
Max Tool Weight
20kg
20kg
20kg
20kg
Axis & Motors
Rapid Feed Rate (X/Y/Z)
20/20/20 m/min
16/20/20 m/min
16/20/20 m/min
12/20/20 m/min
Feed Rate
10000 mm/min
10000 mm/min
10000 mm/min
10000 mm/min
Mitsubishi Motors
HF703 7.0kW
HF703 7.0kW
HF703 7.0kW
HF703 7.0kW
FANUC Motors
a30/3000i 7.0kW
a30/3000i 7.0kW
a30/3000i 7.0kW
a30/3000i 7.0kW
Siemens Motors
1FK7105 8.2kW
1FK7105 8.2kW
1FK7105 8.2kW
1FK7105 8.2kW
General Specifications
Machine Weight
15500kg
16000kg
17000kg
18000kg
Floor Space (LxW)
5800x4150mm
6090x4150mm
8130x4150mm
10310x4150mm
Machine Height
4440mm
4440mm
4440mm
4440mm
Power Requirement
50 kVA
50 kVA
50 kVA
50 kVA
Coolant Capacity
900L
900L
900L
900L
4200mm
Max X-Travel
8000kg
Max Load
8000
RPM
32
Max Tools

Engineered for Heavy-Duty Excellence

The FDC-14 Series double column machining centers are built for the most demanding industrial applications. With unparalleled rigidity, massive work envelopes, and multi-brand control options, these machines deliver the precision and reliability required for aerospace, automotive, and heavy machinery manufacturing.

foundation

Double Column Design

Rigid double column structure with wide column spacing provides exceptional stability and eliminates vibration during heavy cutting operations on large workpieces.

precision_manufacturing

Precision at Scale

Despite their massive size, these machines maintain exceptional accuracy with high-precision ballscrews and linear guides ensuring consistent performance across the entire work envelope.

tune

Flexible Control Options

Choose from five leading control systems - FANUC, Mitsubishi, Siemens, Fagor, or Heidenhain - to match your existing equipment and operator expertise.

20m/min
Max Rapids
18.5kW
Spindle Power
1400mm
Column Spacing
ISO 50
Tool Interface
